Jingjin Group

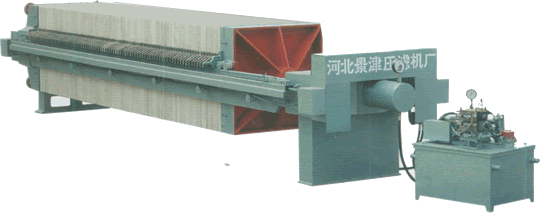

Series of automatic filter press

X^M_AZ Δ /900-U-X

Features:

Adopting the reinforced polypropylene to mold plate which fearures high intensity,light weight,anticorrosion,poisonless and smelless.
Automatically pulling paltes.It is controlled by electric system or microcomputer system.
The hydraulic device is used for pressing and releasing the chamber plates.The electrical contact pressure guage is available to artomatically maintain pressure and the maximum pressure is 25 MPa.
Maximum filtering pressure of 1.6 MPa is the best condition for cake forming;
Press the button on the electrical control board equipped with safe device to ensure safety to operators.

Applications:

Liquid-solid separation in following industries:
chemical,petrochemical,pharmaceutical,food,
metallurgical,textile,environmental protection,energy etc.

Installation
Diagram:

Click pictures for details(XZ900-U)

Technical
Data:

models	Filter Area m²	Cha-mber Amo-unts	Plate Size mm	Cake Thic-kness mm	Cha-mber Vol-ume m³	Filter Pres-sure Compr-essing Pres-sure MPa	Anchor Hole Pitch L1 mm	Overall Dimension (L×W×H) mm	Motor Power kW	Total Weight kg
X^M_AZ900-U	40	32	900×900×60	30	0.59	0.5 0.8 1.0 1.6	3220	4440×1460×1280	3	5500
	50	40			0.75		3700	4920×1460×1280		5800
	60	47			0.88		4120	5340×1460×1280		6100
	80	63			1.19		5080	6300×1460×1280		6700

Note:

Equipment pictures,installation diagrams and technical data are provided for reference only;
Pressure,temperature,flow rate and other properties of filtering material should be informed by buyers,technical consultation and materials experiment for filtration are offered free.
